12-86-9000 Call Point Transmitter

Your one stop shop for high quality consumer and industrial wireless electronics products

440 – 470MHz POCSAG callpoint paging transmitter, suitable for use in supermarkets or department stores.

  • Suited to a variety of retail assistance, security and control applications, the 12-86-9000 is a small, high specification, POCSAG paging transmitter, utilising the 12-86-5000 paging transmitter printed circuit board, subsequently inheriting all its’ type approvals. The unit also incorporates a receiver which checks to see if the channel is busy before transmitting.  It is capable of transmitting text messages directly to pocket pagers.

    The 12-86 range of products can send text messages directly to paging receivers, providing simpler, lower cost systems since intermediate receivers and transmitters are not required for short range applications.

    Using an appropriate receiver, the 12-86-9000 can also be used for general remote control applications such as turning on lights, disabling alarms etc.

    Powered by a standard CR2032 coin cell, the transmitter will operate for more than one thousand transmissions under normal conditions before the battery needs to be replaced.

    12-86 transmitters support up to five inputs, each of which can be programmed with up to a thirty five character message.

    The units can be programmed with a serial programming cable (purchased separately) or they can be supplied pre-programmed. Programming software is available for download from the web site.

    Although the 12-86 is a low power transmitter, when used as a callpoint paging transmitter, a direct line of sight range of up to eight hundred metres can be expected. When used within buildings the range will be reduced depending upon the building, but will remain significant.

    The 12-86-9000 fits the form factor of many standard electrical face-plates so that it can remain in keeping with the surrounding switch gear in cosmetically sensitive areas.

    By default the 12-86-9000 is supplied with a mounting block, but it can be flush mounted in the same manner as most electrical switch plates if required.

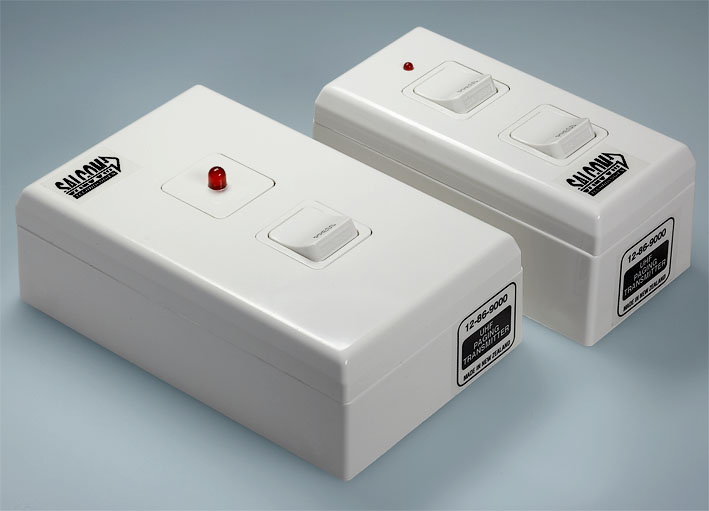

    The transmitter is available in two sizes and is also available in black. By default it is supplied in white in the small form factor.

    12-86-5000 Paging Transmitter PCB

    The 12-86-5000 transmitter PCB used in this product is a small low cost, high specification bare printed circuit board paging transmitter measuring 60mm by 31mm and only 6mm deep with the battery fitted.

    It has been tested and type approved as a bare printed circuit board allowing integration into other products without further type approval and/or testing being required.

  • Power Supply 3 volt CR2032 button cell
    RF Frequency UHF: 440-470 MHz synthesized
    Input Current Standby: 100nA   Transmit: 45mA
    Battery life Approx. 1000 transmissions
    Approx. 10 years standby
    Battery life FSK & True FM for Audio
    Output Power  Approx. 10dBm
    Modulation Carrier FSK with NRZ data
    Deviation ±4.5kHz
    Transmit Duty Cycle Up to 20%, 30 seconds continuous
    Baud Rate 512 Baud
    Message Format POCSAG
    Available Colours White (default) or black
    Enclosure Default size: 103mm x 50mmx 42mm
    On request: 117mm x 74mm x 37mm
    Environmental Protection Requires protection from weather
    Operating temperature -10 to +55 degC
    -30 to +60 degC on request
    Type Approval AS/NZS 4769.1:2000 and EN 2242
    Tested to and meets FCC Part 90

  • Product Brochure 12-86-9000 Product Brochure
    User Manual 12-86-9000 Product Manual
    Configuration Tool 12-86-0000 Configuration Tool
