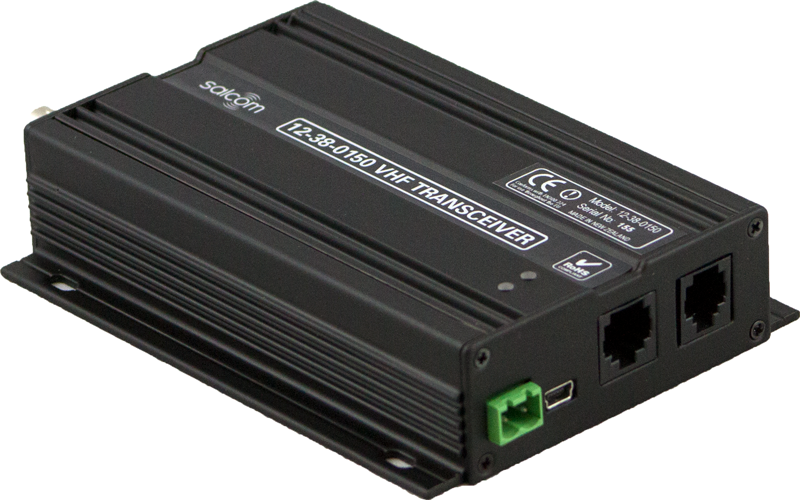

12-38-0000 VHF/UHF Transceiver

Your one stop shop for high quality consumer and industrial wireless electronics products

  • The 12-38-0000 transceiver is capable of accurate control and telemetry over long distances. Designed to be used in hostile environments it can withstand temperature extremes as well as being resilient to electrical noise often found in industrial plants.

    The transceiver, along with its integrated input/output interface, is designed for the control and telemetry of industrial machines with high accuracy and speed.

    The on-board SD card is used to store the configuration of the unit for easy swap-out, and can be also store log and audio wave files. The unit could be made to respond to an event by seizing a radio channel and broadcasting the wave file audio. Anyone carrying a radio transceiver could receive the message.

    The 12-38-0000 is a 5 watt analogue transceiver with POCSAG capability for both transmitting and receiving and comes in two variants, a VHF (136-174 MHz) or UHF (440-470 MHz). All parameters are programmable such as frequency, power output, deviation, POCSAG data transmission, etc..

    The USB port, or the RS232 serial port, can be used to initiate paging transmissions using the SALCOM proprietary protocol, Paging Entry Protocol (PET) or Telocator Alphanumeric Protocol (TAP) PG1 protocol.

  • Power Supply 13.8V DC
    RF Frequency VHF: 136-174 MHz    UHF: 440-470 MHz
    RF Output Power Variable up to 5W ± 1dB 50Ω (with quarter wave whip antenna with a gain of 2.14dBi)
    Input Current Standby: 150 mA Transmit: 2A approx.
    Channel Spacing 6.25kHz, 12.5kHz or 25kHz
    Modulation FSK & True FM for Audio
    Audio modes Analogue FM transmission and reception
    Receiver sensitivity Better than -119dBm @ 1kHz, 12kHz SINAD
    Audio conditioning 300Hz – 3kHz passband software defined pre-emphasis DTMF and CTCSS (<300Hz)
    Muting Software defined muting level
    Spurious emissions -36dBm max
    Baud rate RS232 I/O 9600 baud
    Paging Protocol POCSAG, baud rate: 512, 1200
    Transmit Duty Cycle Up to 100%
    Enclosure Aluminium casing. 77 x 101 x 30mm.
    Environmental Protection Requires protection from weather
    Operating temperature -10 to +50 degC

  • Product Brochure N/A
    User Manual 12-38 Product Manual
    Configuration Tool Salcom Configuration Tool
